Garage Insulation and Drywall Finishing Cost Per Sq Ft Ontario
By the Garage Home Editorial Team — reviewed for accuracy. Last updated October 2026. This article is for informational purposes and reflects typical market pricing; obtain local quotes for your specific project.
Insulating and drywalling a garage is the highest-leverage C$4,000 in Ontario home improvement: it converts a three-season concrete box into a workspace that holds heat, quiets the house wall, and — done to spec — counts toward the finished square footage story when you sell.
This guide prices 2026 Ontario garage insulation and drywall work: R-value targets that actually matter in this climate, vapor-barrier discipline (the line Canadian inspectors enforce), and the upgrade ladder from batt-and-board basics to a heated workshop ceiling.
Garage Insulation and Drywall — At a Glance for CA
Insulating and drywalling a standard double garage in Ontario runs C$3,900–C$13,450 — R-20 batt walls with 6-mil poly, R-40 attic ceiling, 5/8-inch Type X board, taped and ready for paint. Heating infrastructure (mini-split or heater) is separate, and fire-rating upgrades between attached garages and dwellings are code items, not options. This figure is a realistic planning number for Canada in 2026, not a marketing low-ball.
| Line Item | Typical Range (CAD) | What Drives It |
|---|---|---|

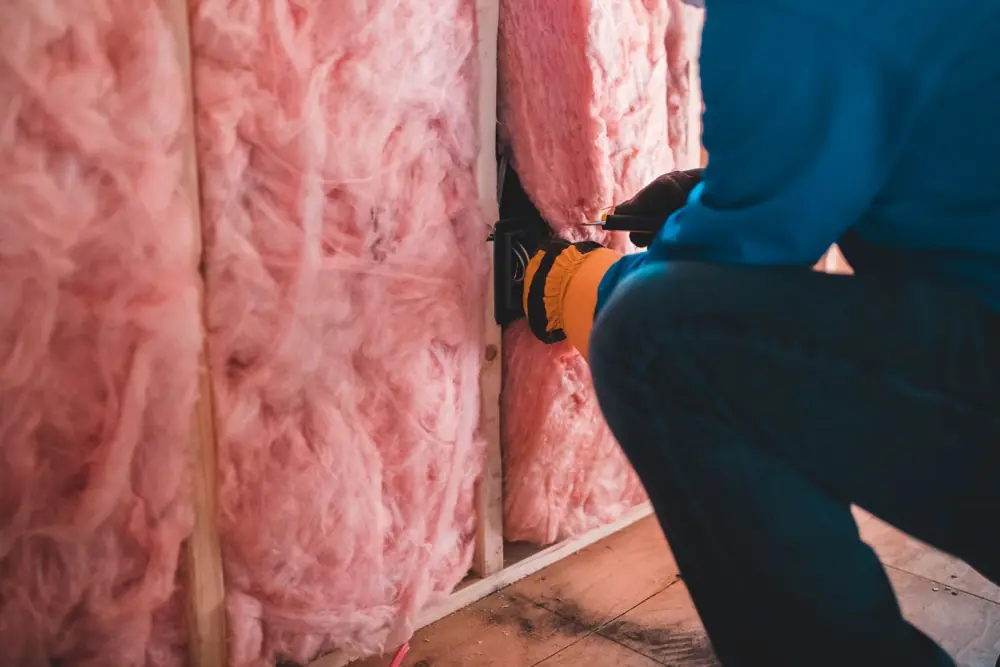

| Wall batt insulation R-20 + 6-mil poly VB | C$1,350–C$2,700 | 2×4 walls @ 16″ oc; the Ontario baseline |
| Ceiling insulation R-40 blown or batt | C$1,000–C$2,000 | Attic-type storage trusses or cathedral ceiling |
| Type X 5/8″ drywall supply + hang | C$1,700–C$3,150 | Fire-rated board required at house-adjacent walls |

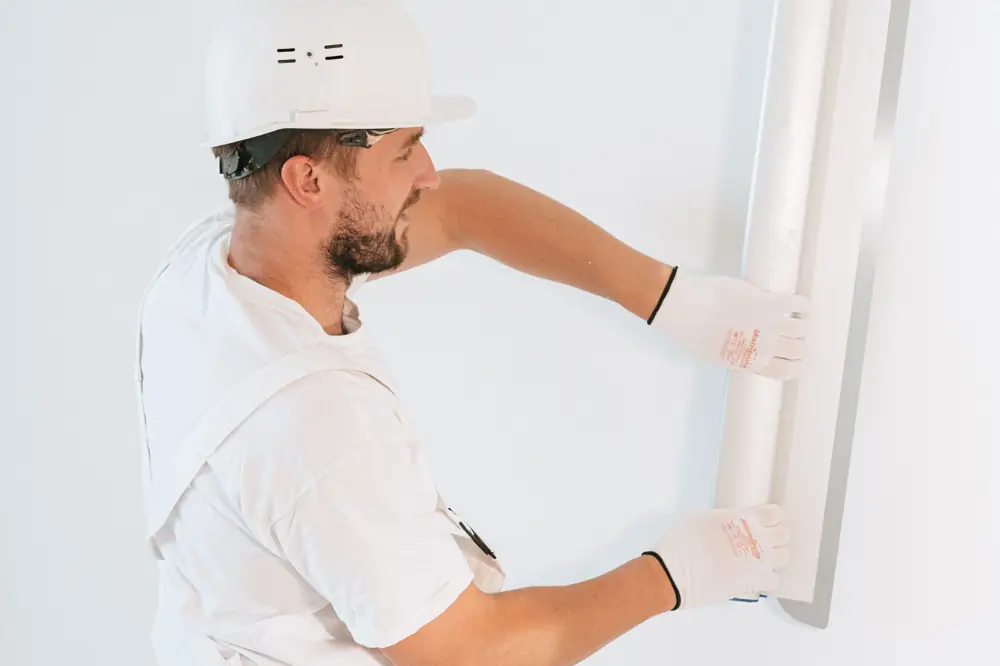

| Taping, mudding, sanding, ready-for-paint | C$1,250–C$2,450 | Two coats minimum, taped corners |
| Vapor barrier acoustical sealant + tape | C$280–C$560 | The detail inspections actually fail |
Understanding Garage Insulation and Drywall
Ontario garages convert on two code realities. First: any wall or ceiling shared with the dwelling must be fire-separated — 5/8-inch Type X drywall is the standard assembly, and inspectors check it before insulation is even visible. Second: vapor barriers are enforcement items in this climate; poly seams sealed with acoustical sealant, boxes foamed, and the ceiling plane airtight — because a wet wall in January becomes a mould wall by March.
The R-value economics are unglamorous and honest: R-20 walls and R-40 ceilings are the Ontario sweet spot — the point where marginal insulation cost stops paying back against heating in a garage that is heated intermittently. R-28/2×6 framing pays only for daily-heated workshops; R-12 ‘budget’ batts are a false economy that re-builds the project in five years.
What Moves the Price Up or Down
What separates a C$3,500 invoice from a C$12,000 one:
| Factor | Cost Impact | Detail |
|---|---|---|
| Double vs single garage | +50–70% | More wall and ceiling area, same mobilisation |
| Batt vs spray foam (walls) | +1500–3500 | Foam buys air-tightness and R-24 in 2×4 depth |
| Cathedral/flat ceiling vs attic trusses | +800–2000 | Cathedral assemblies are deeper and fiddlier |
| Fire-rating scope at house wall | +400–900 | Type X + sealed penetrations — code, not choice |
| Pre-existing interior finish to remove | +500–1500 | Old paneling or partial board removal |
| Electrical box/access relocation before board | +300–800 | Do outlets/lights before the wall closes |
Insulation Tiers for Ontario Garages
Three tiers from functional to workshop-grade:
| Option | Description | Best For | Cost Level |
|---|---|---|---|
| Standard batt system | R-20 walls / R-40 ceiling, poly VB, Type X board | Intermittently heated garages, storage + projects | Low-mid (C$3,500–6,500) |
| Spray-foam walls + batt ceiling | 2lb foam R-24+ air-sealed walls | Daily-use workshops, heated zones | Mid (C$6,500–9,500) |
| Full workshop envelope | Foam walls + detailed ceiling + HRV-lite venting | Climate-controlled year-round workshops | High (C$9,500–12,000+) |
Batt-and-board answers 80% of Ontario garages. Foam earns its premium when the space heats daily; otherwise the air-sealing detail matters more than the R-number — spend on sealing, not depth.
Three Realistic Project Scenarios
Budget — double garage, batt system — C$4,250–C$6,150
Standard 2×4 walls, attic trusses above.
- R-20 walls + R-40 ceiling, poly — C$2,350–C$3,350
- Type X hang, tape, ready-for-paint — C$1,900–C$2,800
Why this matters: the honest Ontario baseline — holds heat, passes inspection, paint when ready.
Mid — foam walls for daily use — C$7,600–C$10,100
Workshop heated weekdays; air-tightness is the goal.
- 2lb spray foam walls — C$3,600–C$4,700
- Ceiling R-40 + board + tape — C$4,050–C$5,400
Why this matters: foam’s real product is the air seal — daily-heated spaces feel the difference within one winter.
Premium — full envelope workshop — C$11,200–C$13,450
Heated and used year-round; ventilation planned.’, )
- Foam walls + premium ceiling detail — C$5,600–C$6,950
- Board, finish, venting provision — C$4,500–C$5,600
Why this matters: year-round workshops need ventilation as much as insulation — plan the HRV-lite provision before walls close.
The Ontario ladder is sealing quality, not R-inflation: the airtight batt garage outperforms the leaky foam garage every January.
Sample Budget Breakdown
The table below shows how a typical mid-range budget for garage insulation and drywall distributes across trades, materials and compliance in Canada. Adjust the percentages to your own scope before using it as a savings target.
| Category | Estimated Amount | Explanation | Optimization Tip |
|---|---|---|---|
| Insulation and air sealing | C$1,700–C$4,700 | Batt or foam + vapor barrier discipline | Spend the sealing hours — that is where performance lives |
| Board and finish | C$2,900–C$5,400 | Type X hang + tape + prep | 5/8 Type X at the house wall is code; use it everywhere for consistency |
| Pre-board electrical planning | C$340–C$900 | Boxes, circuits, lighting rough-in | Everything wall-mounted goes in before board day — always |
Every figure above is an indicative 2026 market range. Final quotes move with site conditions, contractor availability and the exact specification you lock in.
From Quote to Completion: the Typical Timeline
Most garage insulation and drywall projects follow the same five-stage rhythm. Knowing the calendar before you sign prevents the two classic frustrations — feeling rushed into a deposit, and being surprised by a mid-project gap while materials arrive.
- Install day: 3–6 hours — Old door off, hardware refreshed, new sections hung, springs matched and calibrated, opener re-tuned, site cleaned and old door hauled away.
- Day of install + 2 weeks: tune-up window — Cables stretch slightly in the first weeks; a reputable installer includes a free adjustment visit in the quote — ask for it in writing.
- Day 0–2: site measure — An installer measures the opening, checks headroom and side-room, photographs the existing door and confirms which catalogue models actually fit — quote accuracy lives or dies here.
- Day 3–10: quotes and selection — Two to three itemised quotes arrive; you confirm the model, colour and window spec, and pay any deposit (hold it under 25% where the law allows).
- Week 1–3: door and hardware arrive — Stock steel doors ship in days; custom insulated, wood-look or non-standard colours run 2–3 weeks from the factory.
Smart Ways to Control the Budget
Cost control on garage insulation and drywall is mostly about scope discipline and timing. These are the strategies that consistently deliver the largest savings:
Collect three itemised quotes
Comparing line-by-line exposes padding in labour or hardware lines; the cheapest total is not always the best value once warranties differ.
Advantages:
- Directly reduces the controllable parts of the quote
- No impact on structural quality or compliance when scoped correctly
Disadvantages:
- Takes 1–2 weeks of waiting, and some installers charge for site measure visits.
- Requires planning lead-time you may not have on urgent repairs
Replace hardware during the door swap
Springs, rollers and cables wear on the same schedule as the door; fitting them while the tradesperson is already on site costs far less than a second call-out.
Advantages:
- Directly reduces the controllable parts of the quote
- No impact on structural quality or compliance when scoped correctly
Disadvantages:
- Raises the upfront ticket by 15–25% even when the old parts still function.
- Requires planning lead-time you may not have on urgent repairs
Buy the opener and door from the same installer
One supplier means one warranty point of contact and guarantees the opener is matched to the door weight and spring type.
Advantages:
- Directly reduces the controllable parts of the quote
- No impact on structural quality or compliance when scoped correctly
Disadvantages:
- Bundling can lock you out of cheaper online hardware pricing.
- Requires planning lead-time you may not have on urgent repairs
Time the job for the off-season
Demand for door work dips after summer and before spring; many companies discount labour or offer free tune-ups in the quiet months.
Advantages:
- Directly reduces the controllable parts of the quote
- No impact on structural quality or compliance when scoped correctly
Disadvantages:
- Weather delays are more likely, and emergency pricing applies if an old door fails mid-winter.
- Requires planning lead-time you may not have on urgent repairs
Permits, Rules and Safety
Insulation and drywall in attached garages is permit territory in most Ontario municipalities — and the inspection points are specific:
- Detached garage builds sit inside site-coverage and boundary setback rules; councils can refuse even a compliant design if it blocks a neighbour’s light.
- ADU and granny-flat conversions in California and many US cities have streamlined state-level pathways, but local design reviews still add weeks to approval.
- A door like-for-like swap is usually exempt from planning approval, but converting the garage into living space almost always triggers both a building permit and a change-of-use assessment.
Maintenance and Long-Term Ownership Costs
The purchase price is only the first line of the budget. These recurring items are what garage insulation and drywall owners in Canada actually spend money on:
| Task | Frequency | Typical Cost | Why It Matters |
|---|---|---|---|
| Wash painted/steel finishes and check seals | Yearly | DIY (free–$40) | Salt-air regions corrode steel quickly; seals keep dust and water out of the conversion or workshop. |
| Lubricate springs, rollers and tracks | Every 6–12 months | DIY (about $15 of spray) | The single highest-return task; friction is what kills springs and openers early. |
| Test the auto-reverse safety sensors | Quarterly | DIY (free) | A door that fails to reverse on a child or pet is a legal and safety liability in all five countries. |
| Professional tune-up | Yearly | $90–$160 | Catches cable fray and spring tension drift before they fail at the worst moment. |
The finished garage joins the house maintenance cycle: annual poly-seal spot checks at boxes, humidity awareness in the first winter (a sealed garage can sweat — watch the ceiling corners), and paint inspection every 5–7 years as the thermal-cycle crack indicator.
Frequently Asked Questions
Do I need a permit to insulate my garage in Ontario?
Usually yes for attached garages — the fire-separation and vapor-barrier inspections are the point. Detached garages often exempt below size thresholds; check your municipality, it is a 10-minute call.
Is R-20 enough for Ontario?
For intermittently heated garages: yes, sealed well. R-28 in 2×6 framing pays back only for daily-heated spaces — the air barrier beats the R-number at our heating pattern.
Why Type X drywall specifically?
Fire separation between garage and dwelling is Ontario Building Code — 5/8-inch Type X is the standard assembly at shared walls/ceilings, with sealed penetrations. Regular 1/2-inch board there fails inspection.
Can I drywall over existing board?
Over sound board: yes with screw-bonding to structure. Over damaged or wet-history board: strip it — hiding moisture history behind new board is the classic hidden-mould setup.
Summary
Planning garage insulation and drywall in Canada starts with an honest range — C$3,900–C$13,450 for the scenarios most homeowners actually build — then works backwards through air-sealing discipline, fire-rated board at the house wall, and pre-board electrical planning.
Budget C$3,500–$6,500 for the honest batt-and-board conversion, honor Type X at the house wall as law, and put every wire and box in before board day — the wall closes once. Collect at least three itemised quotes, confirm the permit path before signing, and hold a 10–15% contingency for site surprises. Those three habits protect more budget than any product choice.
